DLS Color Viewing Light v8
Specifications

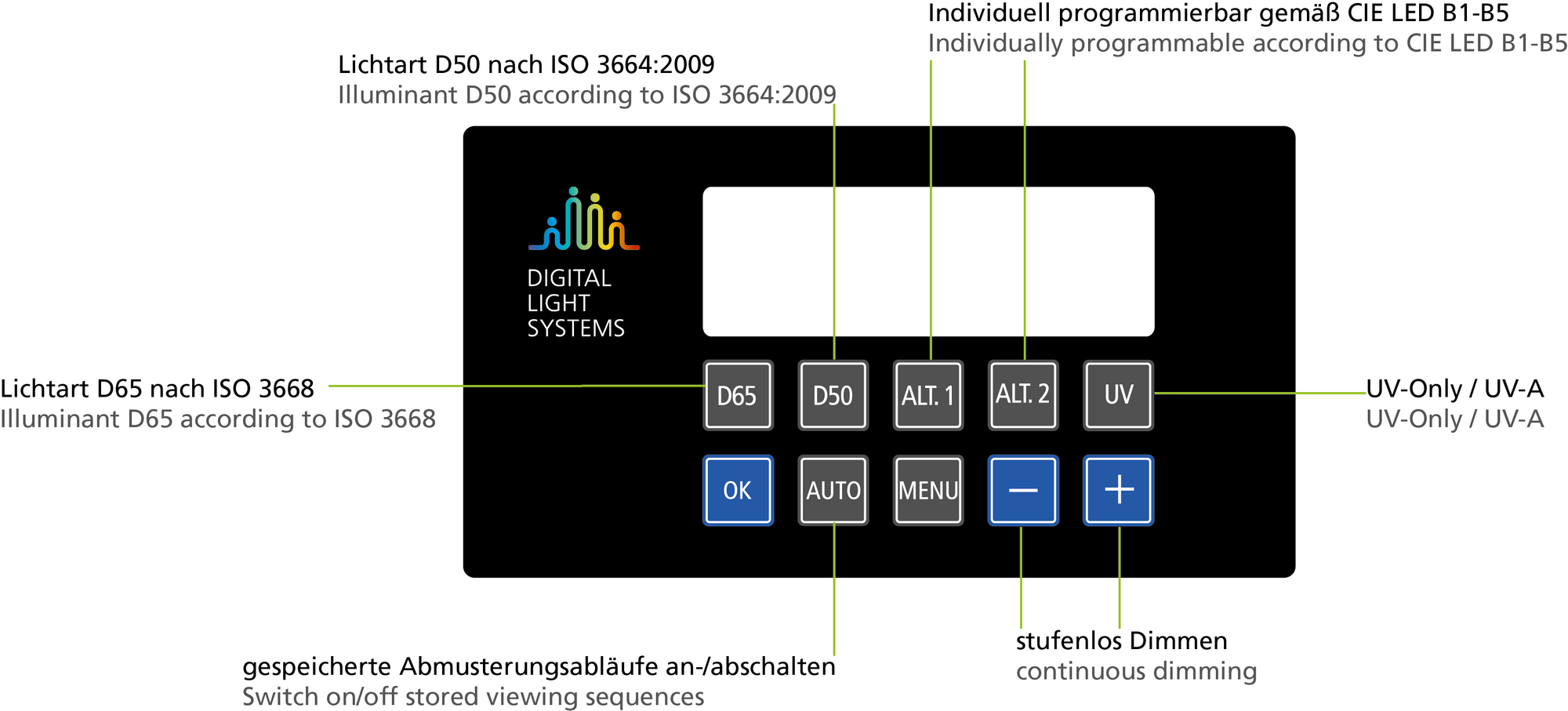

Discover the latest kind of color proofing with our DLS Color Viewing Light v8. The optimized control system enables much easier LED-based assessment. In addition to the illuminants D50, D65 and UV-A, two specific illuminants can be added to the DLS Color Viewing Light v8, according to customer's needs. Furthermore, the UV content can be turned ON/OFF and stored proofing settings can be easely switched on or off at the touch of a button.
High performance LED-based viewing light with:
- unmatched light distribution
- high uniformity and optimal spectral characteristics
- shadow- and glare-free CAD-based prismatic diffuser
- expected life of 50,000 hours
- maintenance free; No tube replacement
- 5 LED-based illuminants according to :
D50 ISO 23603, CIE S 012, ISO 3664
D65 ISO 23603, CIE S 012, ISO 3668
ALT1 select CIE 15:2018 B1 (2733K), B2 (2998K) or B3 (4103K)
ALT2 select CIE 15:2018 B1 (2733K), B2 (2998K) or B3 (4103K)
UV-A - Exact color coordinates D50/D65
- Low metamerism index in the visible range: ≤ 0.8 (MIvis)
- Low metamerism index in the UV range: ≤ 0.6 (MIuv)
- Mixed-light function
- D50/D65 Continuous dimming
- D50/D65 switch off/on UV-content
- USB interface
- Memory function for presets
- Programmable light sequences
U.S. Pat. No. US 8,592,748,B2
A list of suitable accessories can be found under Downloads.
-
Asymmetrical light design for viewing from one side (fixed viewing position)
-
Little reflection and glare
-
Switch off UV content for assessment to old ISO 3664
-
Noon daylight (LED 5000 K, D50 CIE)
-
Average daylight from the northern sky (LED 6500 K, D65 CIE)
-
UV-Only (UV-A)
-
LED B1-B5
Illuminant characteristics
-
USB interface for connection to PC
-
Illuminants are dimmable
-
Multiple illuminants can be selected simultaneously
Features
-
For flat viewing samples, such as paper, fabrics, coatings
-
For 3D viewing samples made of different materials
