DLS Challenge


The economic proofing station for 3B and 6B formats is the entry-level solution for our LED based stations. With the proven JUST LED technology, proofs can be matched under D50 and D65, while the UV component can be switched on and off. The special prismatic lens provides an even, glare and reflection free illumination.

  • unique JUST LED technology, Fogra certified according to ISO 3664:2009, Pat. No. US 8,592,748 B2
  • switchable: D50 and D65 each with and without UV component for color matching according to the old and new ISO 3664 and ISO 3668 standards
  • UV-ONLY: UV-A for the detection of optical brighteners
  • continuous dimming and USB interface for softproofing
  • no color shift when dimming
  • no warm-up phase after switching on
  • 20 times the operating hours of fluorescent lamps (> 50,000 h) stable light conditions over the entire operating life
  • no tube replacement necessary
  • extremely uniform, glare and reflection-free illumination due to asymmetrical light guidance and prismatic lenses
  • ISO-compliant illuminance of 2000 lux
  • Color rendering (CRI) Ra ≥ 95
  • exact color coordinates (10°):
    D50: x = 0.3478 / y = 0.3595 (≤ 0.002)
    D65: x = 0.3138 / y = 0.3309 (≤ 0.002)
  • low metamerism index in the visible range: ≤ 0.8 (MIvis)
  • low metamerism index in UV range: ≤ 0.6 (MIuv)
  • Sampling area in neutral, matt grey (Munsell N7)

    Illuminant characteristics

  • Asymmetrical light design for viewing from one side (fixed viewing position)

  • Almost no reflection and glare

  • Switch off UV content for assessment to old ISO 3664

  • Noon daylight (LED 5000 K, D50 CIE)

  • Average daylight from the northern sky (LED 6500 K, D65 CIE)

  • UV-Only (UV-A)


  • USB interface for connection to PC

  • Illuminants are dimmable


  • For flat viewing samples, such as paper, fabrics, coatings

  • Fit for soft proofing – Device brightness can be adapted to monitor brightness (for SP)

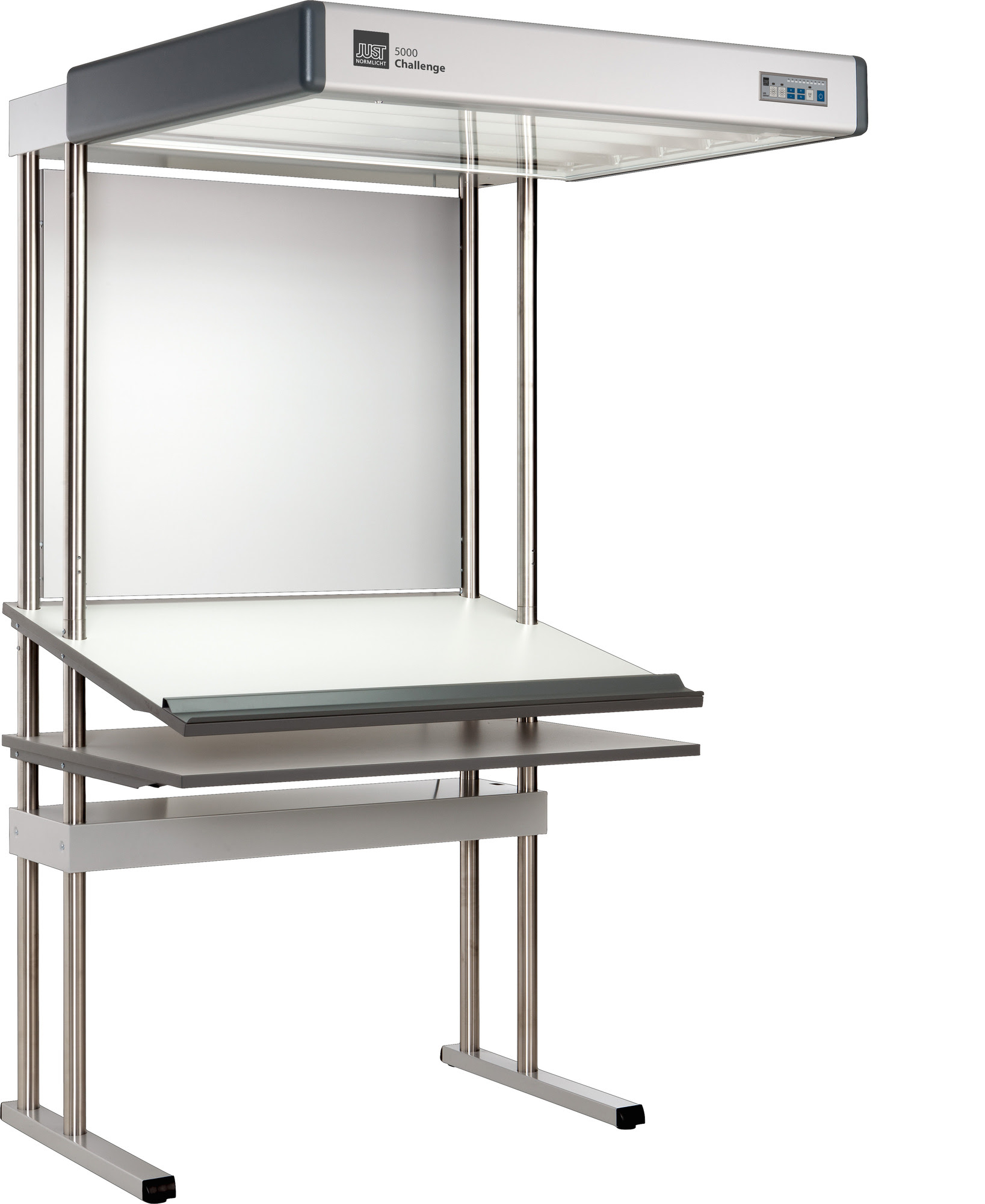

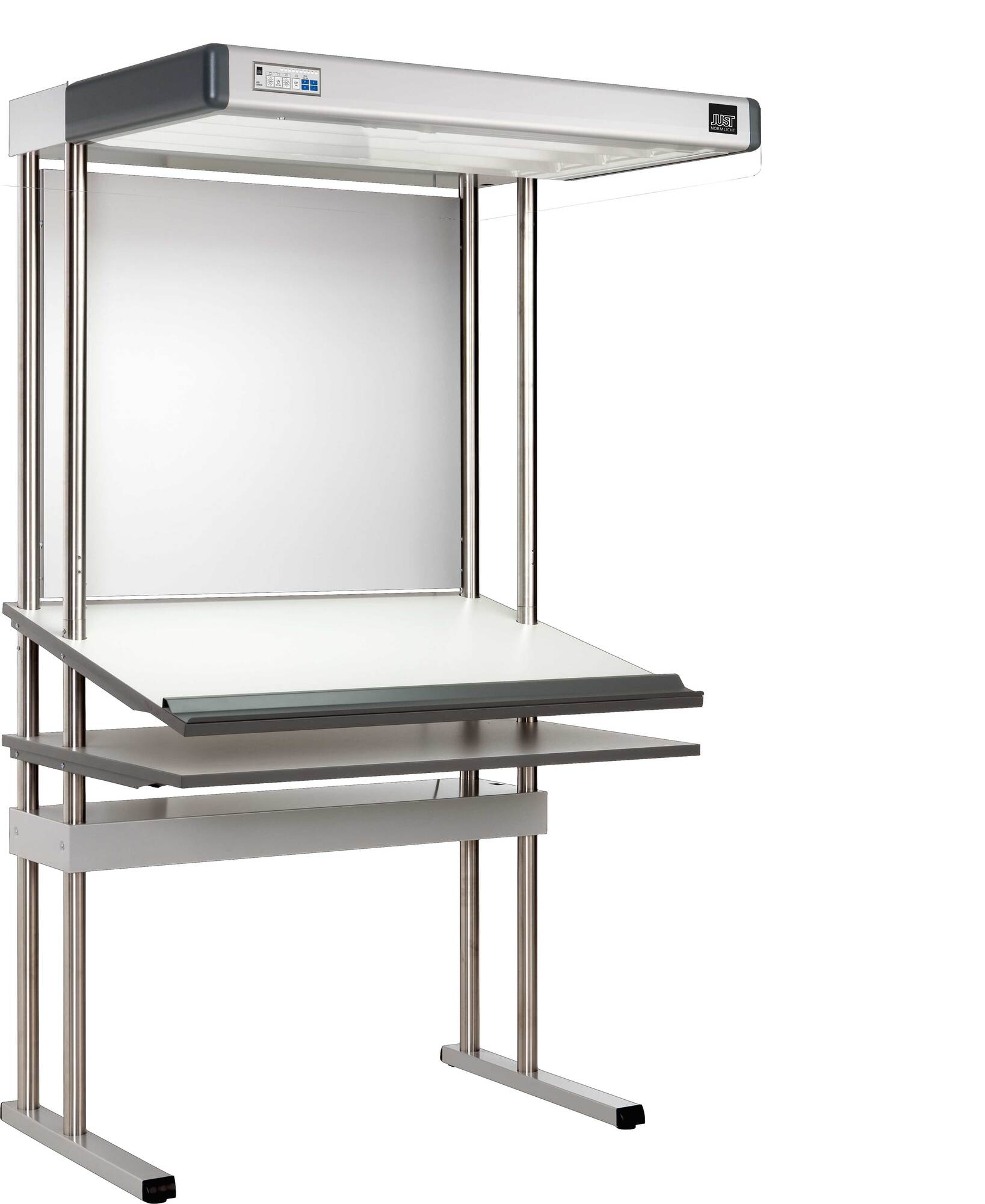

DLS Challenge 3B

DLS Challenge 3B


Illumination area (W x D): 100 x 70 cm

Outside dimensions (W x H x D cm): 128 x 230 x 128,5
Usable area (W x D cm): 107 x 90

Price on request

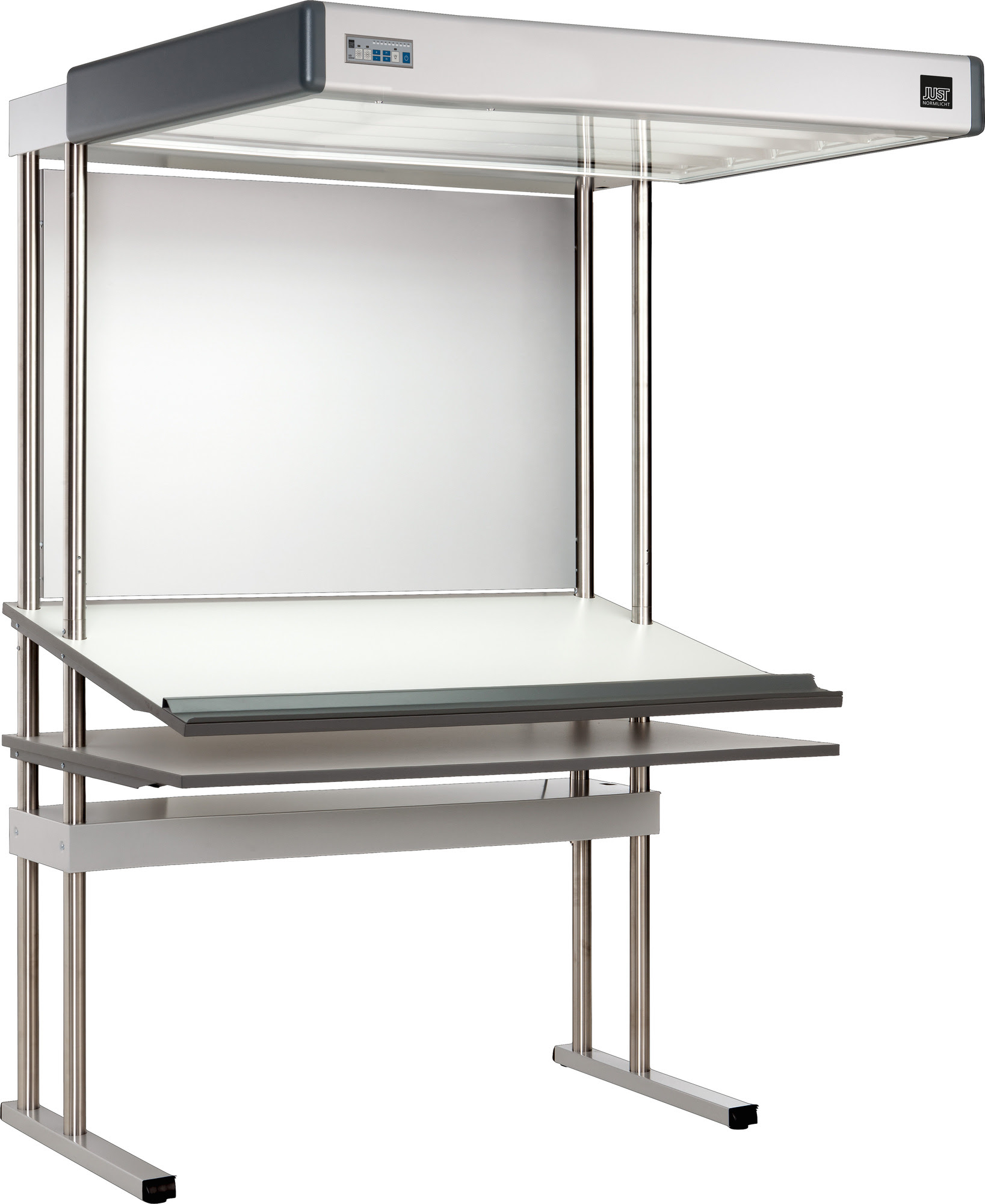

DLS Challenge 6B

DLS Challenge 6B


Illumination area (W x D): 140 x 100 cm

Outside dimensions (W x H x D cm): 160 x 230 x 128,5
Usable area (W x D cm): 148 x 109

Price on request

made in germany
