DLS Color Viewing Light v2

Specifications

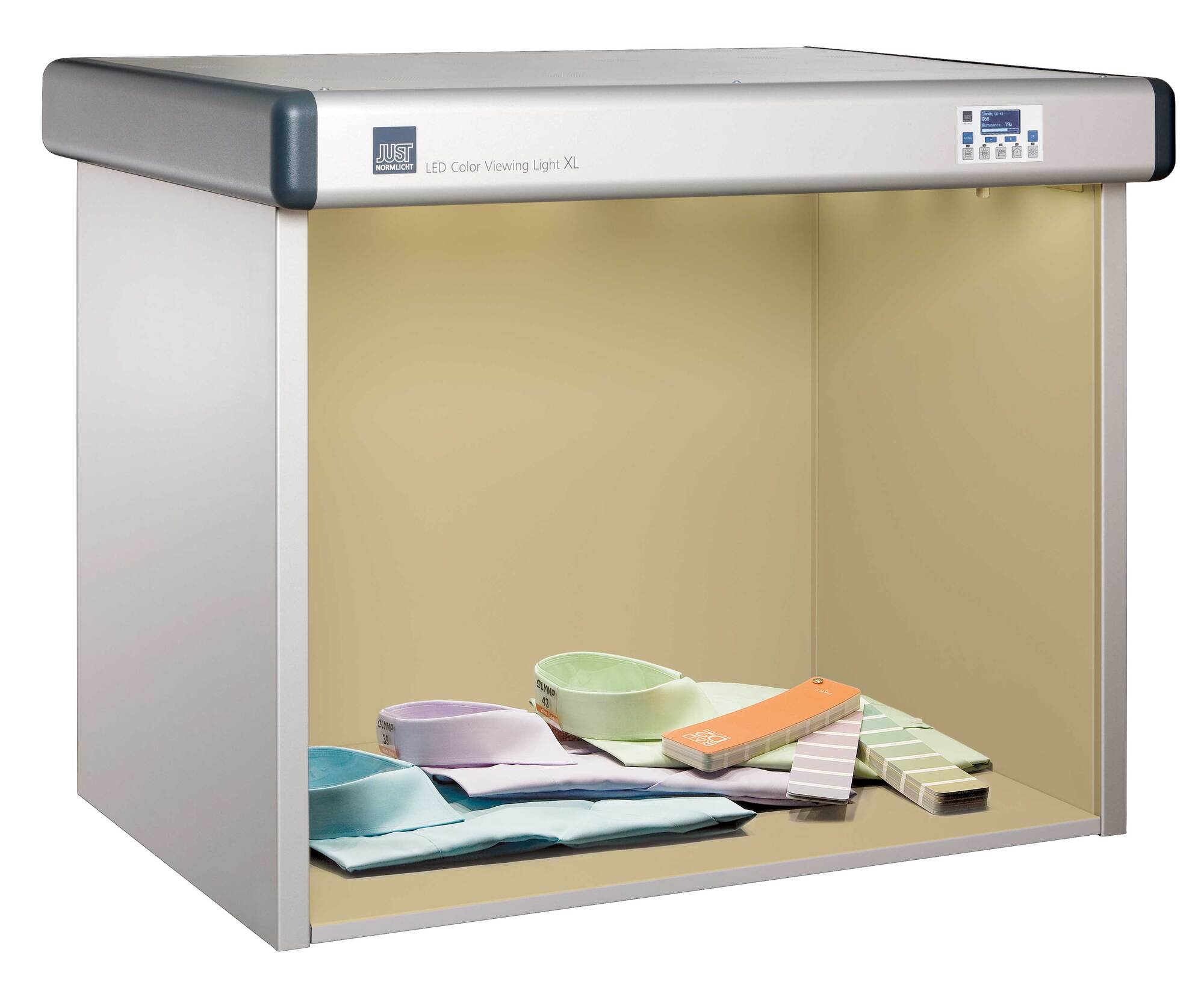

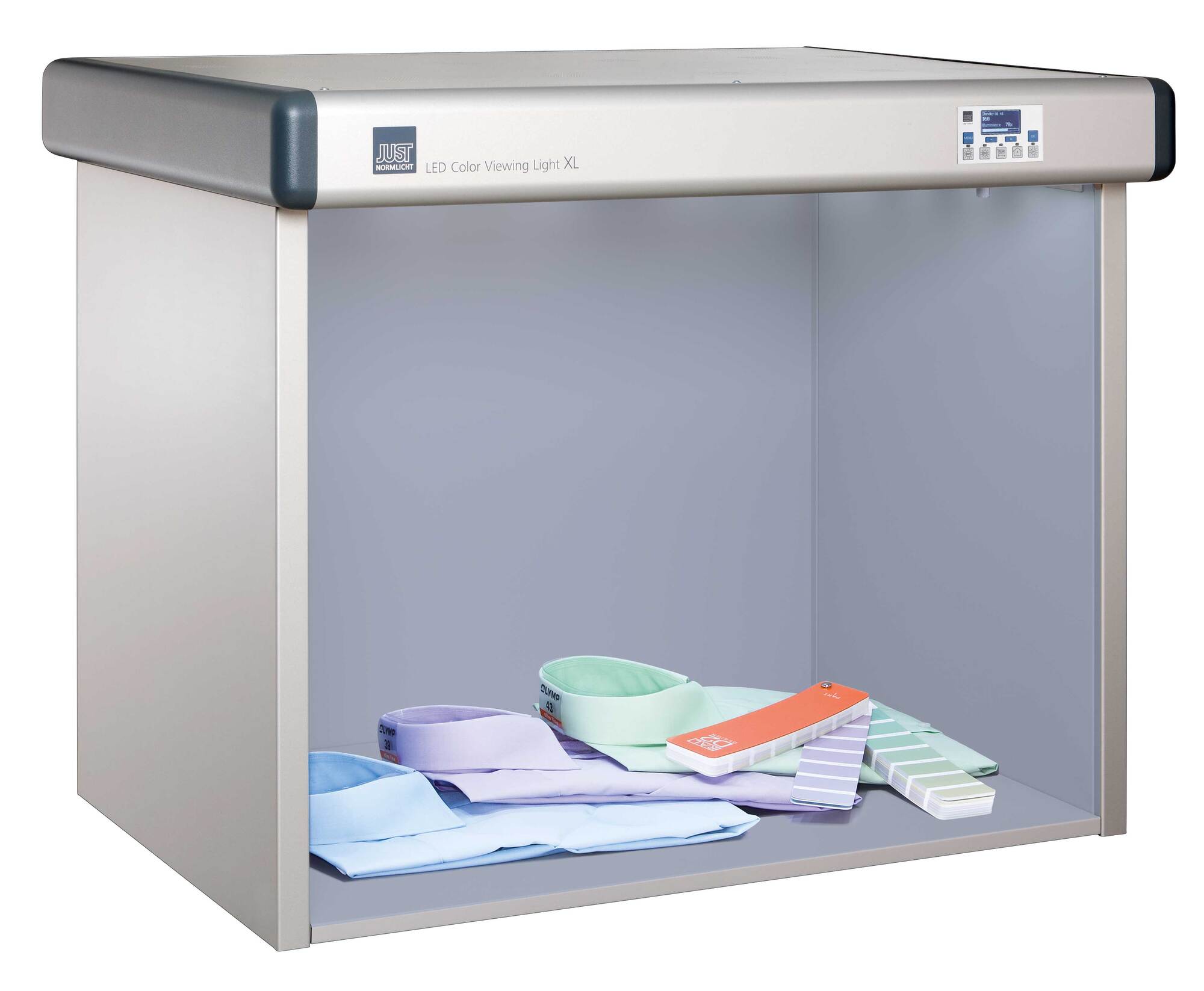

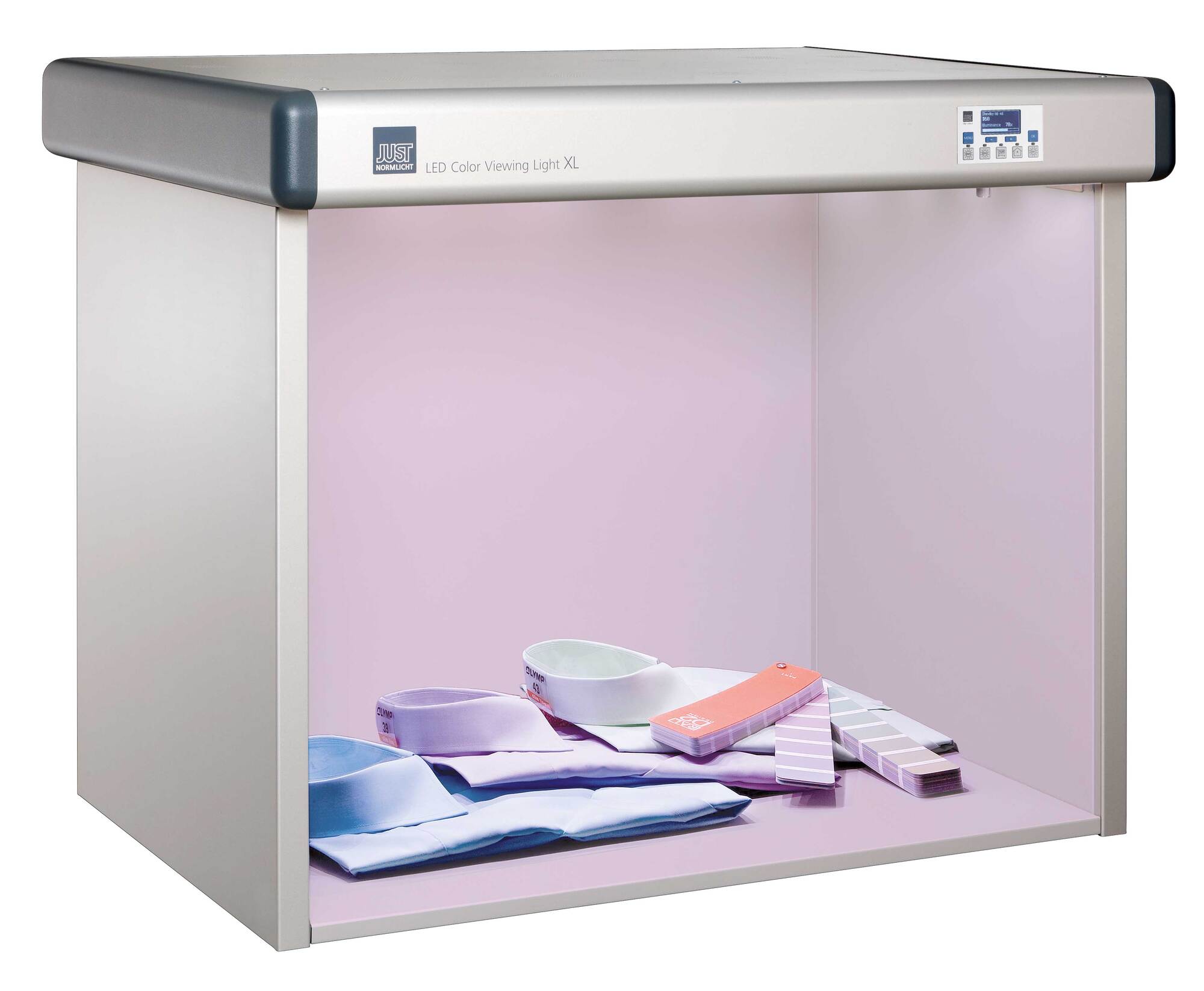

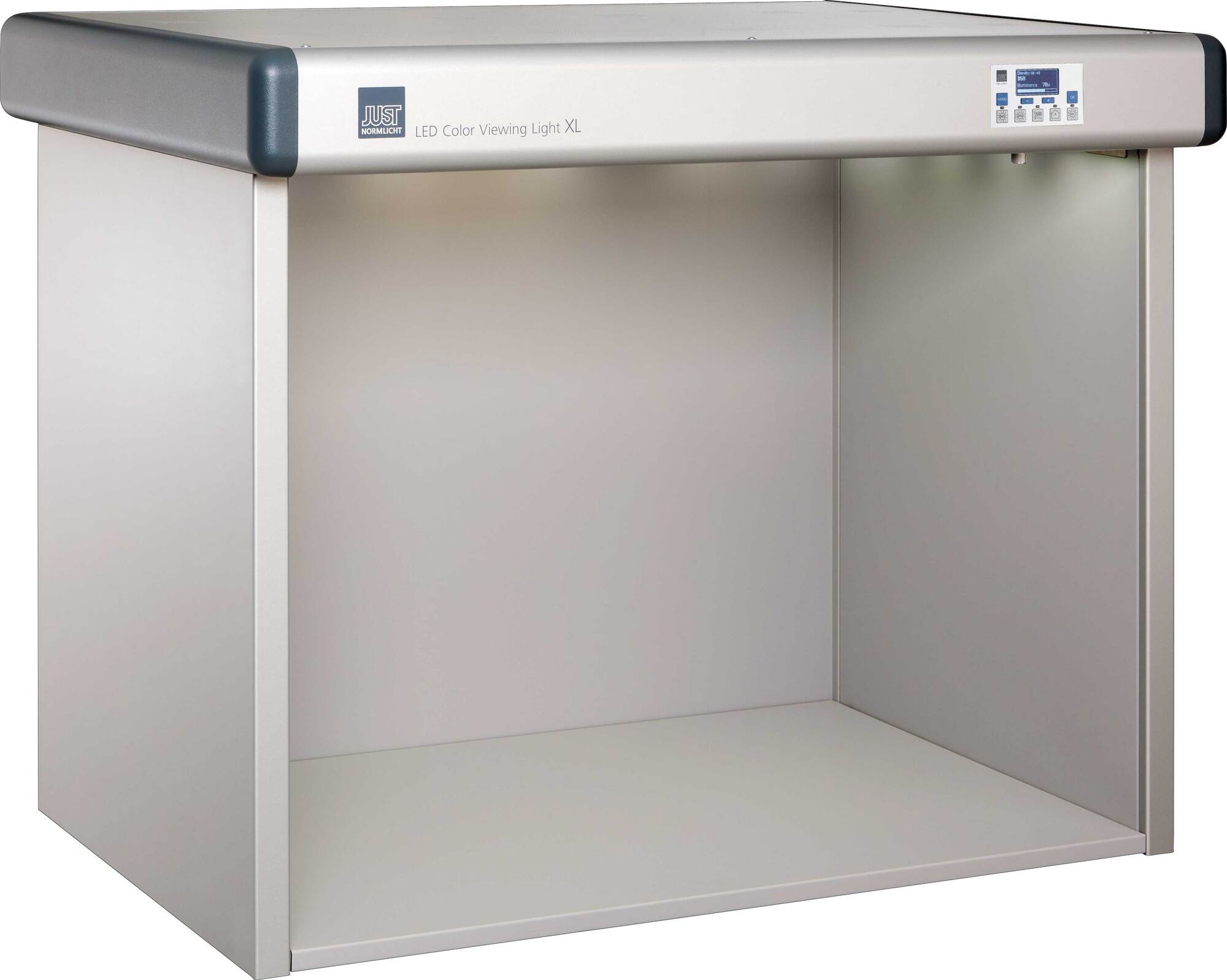

Don‘t restrict yourself to a handful of illuminants. The LED Color Viewing Light gives you a viewing booth that offers high-quality simulation of a wide variety of illuminants in a larger color space than sRGB. Use the matching software to define the illuminants of relevance for you. The multispectral LED light source realizes them perfectly. The unique, patented LED calibration method guarantees permanently consistent light conditions.

  • Perfect for reliable color decisions in the textile, plastics, automobile and furniture industries
  • Multispectral LED light source for simulation of an almost endless number of illuminants, Pat. No. US 8,592,748 B2
  • Optimum realization of almost any desired standard illuminant, such as D50, D65, D75 or A with adJUST LEDcontrol professional
  • 5 pre-programmed light sources with manual switching: D65, D50, TL84(LED), A, UV
  • UV components can be added to detect fluorescence
  • Stable light conditions thanks to a unique calibration method
  • Substantially longer service life, compared to conventional fluorescent lamps
  • Unequivocal detection of metamerism through simulation of widely differing light conditions
  • The HYBRID version has additional TL84 fluorescent lamps for improved detection of metamerism
  • Interior designed in neutral, matt gray (Munsell N7)
  • NOTE: Preset illuminants can be specified on request. Our adJUST LEDcontrol professional software is necessary for free selection from the spectrum.
A list of suitable accessories can be found under Downloads.

    Illuminant characteristics

  • Noon daylight (5000 K, D50 CIE)

  • Average daylight from the northern sky (6500 K, D65 CIE)

  • Incandescent/domestic lighting (2700 K, A)

  • For detecting fluorescent substances (UV-A)

  • LED for simulation of all (standard) illuminants

  • « general product features of all devices; special featuers of particular devices »

  • Based on fluorescent lamps for even better light quality

    Features

  • USB interface for connection to PC

  • Illuminants are dimmable

  • Digital operation hours meter for one illuminant

  • Multiple illuminants can be selected simultaneously

    Applications

  • For flat viewing samples, such as paper, fabrics, coatings

  • For 3D viewing samples made of different materials

  • Very good detection of metamerism thanks to numerous illuminants

Types

DLS Color Viewing Light v2 M  – US

DLS Color Viewing Light v2 M – US

202203

Illumination area (W x D): 25" x 14"

Price on request

DLS Color Viewing Light v2 M HYBRID - US

DLS Color Viewing Light v2 M HYBRID - US

202204

Illumination area (W x D): 25" x 14"

Special features:

  • TL84plus

Price on request

DLS Color Viewing Light v2 XL HYBRID – US

DLS Color Viewing Light v2 XL HYBRID – US

202205

Illumination area (W x D): 37" x 28"

Special features:

  • TL84plus

Price on request

DLS Color Proof Light v2 XL HYBRID – US

DLS Color Proof Light v2 XL HYBRID – US

202207

Illumination area (W x D): 39 3/8" x 27 1/2"

Outside dimensions (W x H x D): 42 1/2 x 4 3/4 x 31 1/2"

Price on request
