DLS Wall Illumination

Specifications

DLS Wall Illumination systems are the professional solution for color critical visual assessments of large format prints, posters, and plots as well as complete layouts of multi-page jobs. All systems contain both CIE D50 and D65 illuminants and conform to the ISO 3664:2009 international viewing standard. These turn-key solutions include luminaires, magnetic wall, mounting hardware, and remote system control panel. Standard system are available in sizes from 4’ (1.2m) to 19’ wide. Custom systems of any size and configuration with additional illuminants and other features are available – just contact us for assistance.

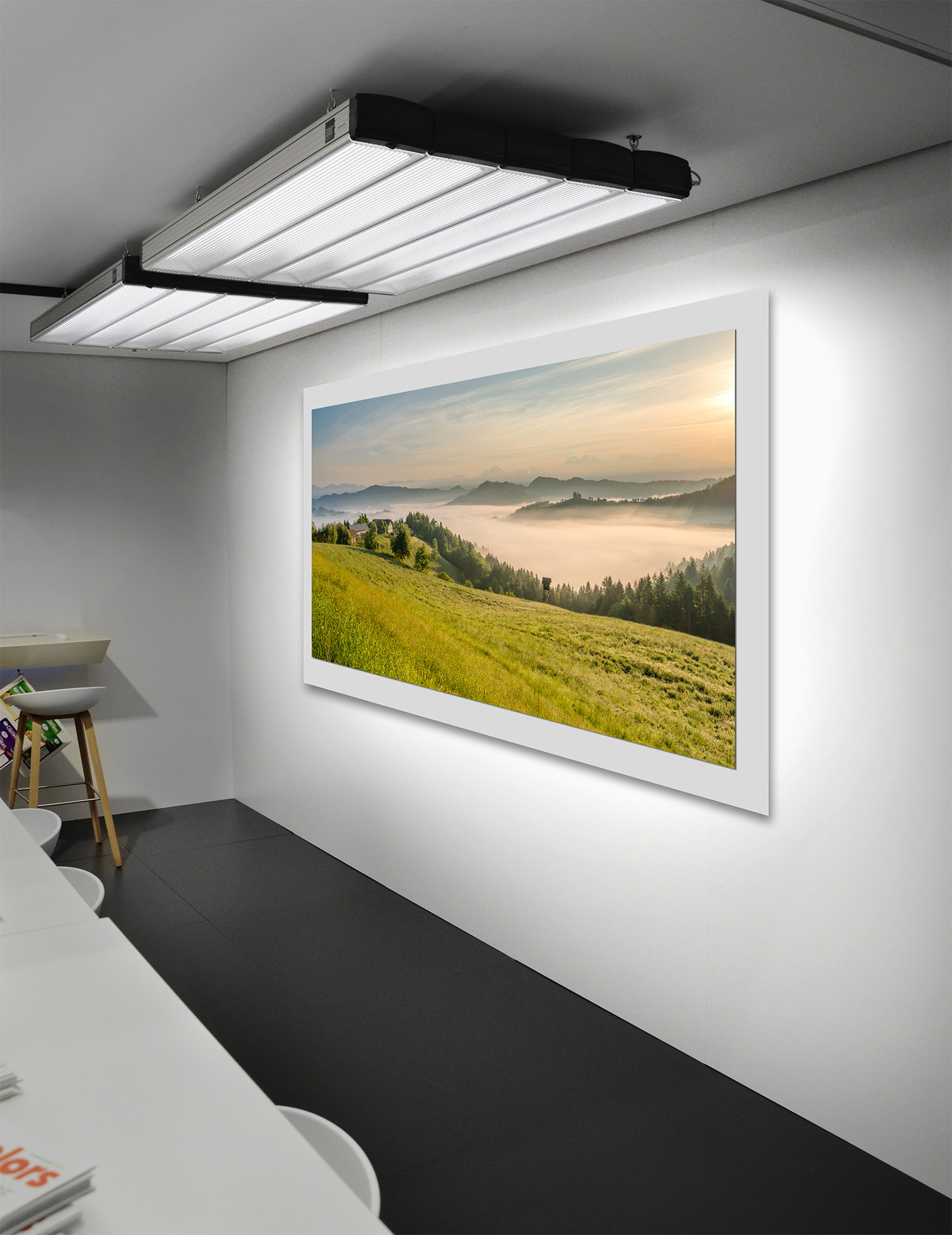

Optimally suited to wall illumination of large formats

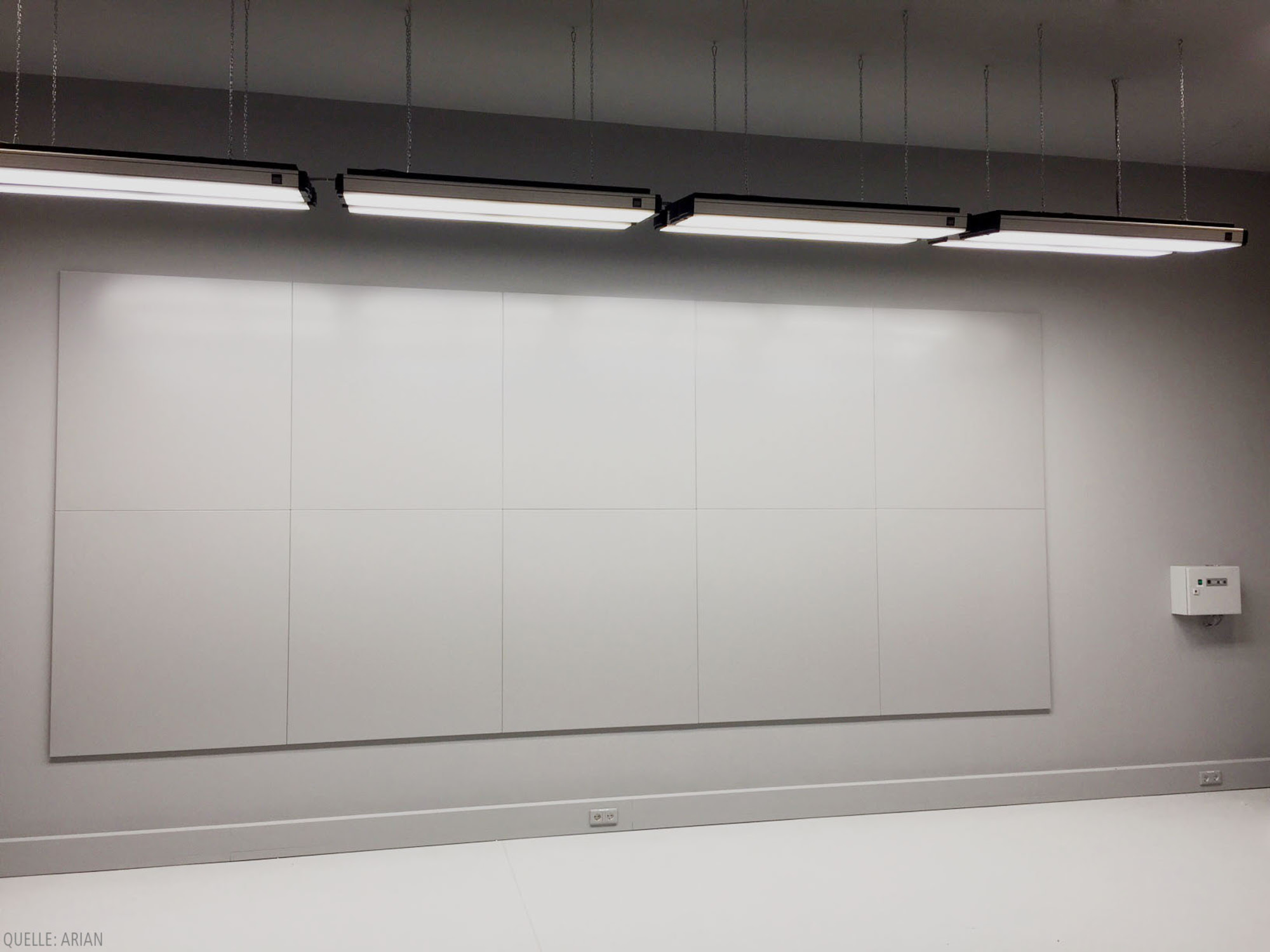

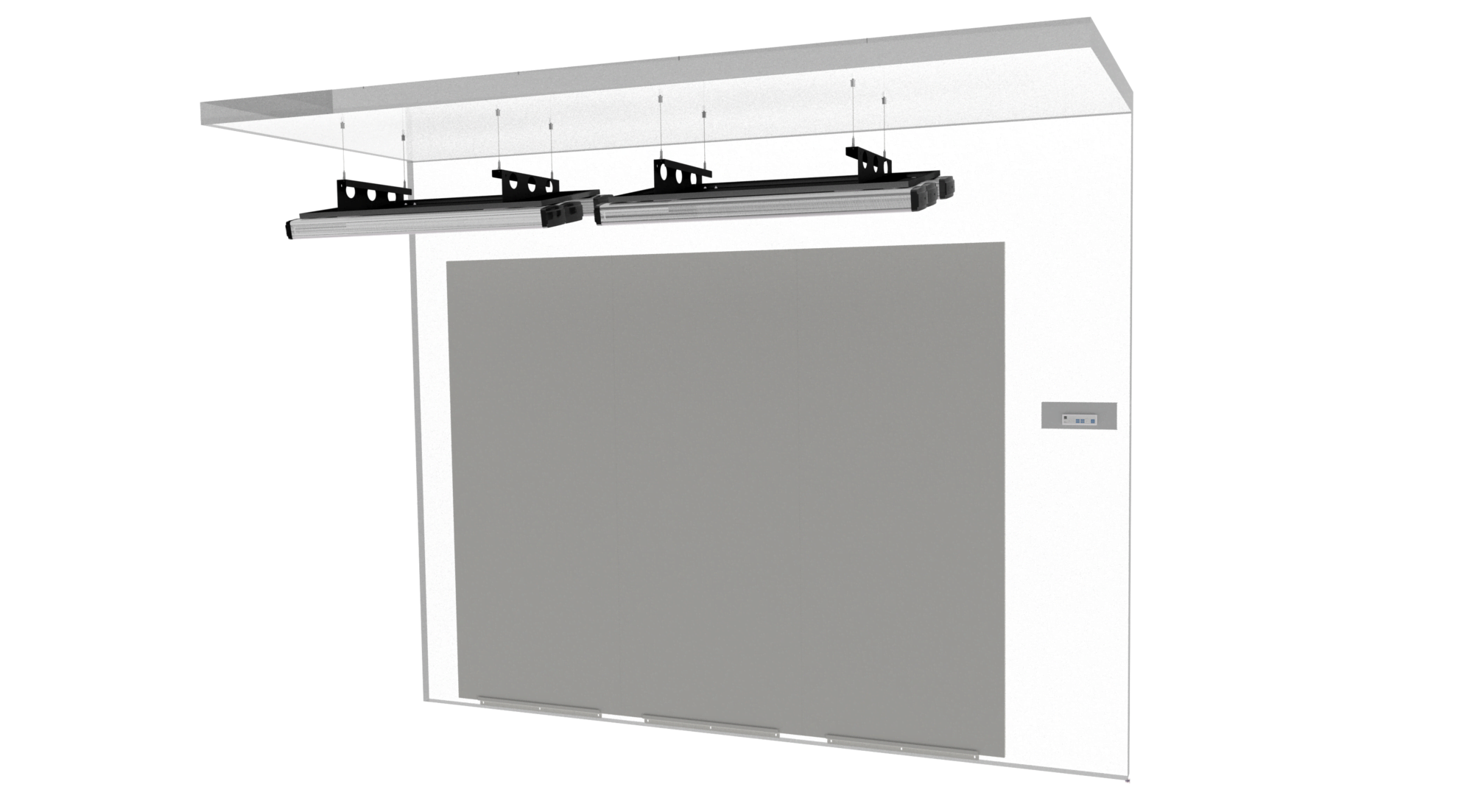

Including magnetic rear wall

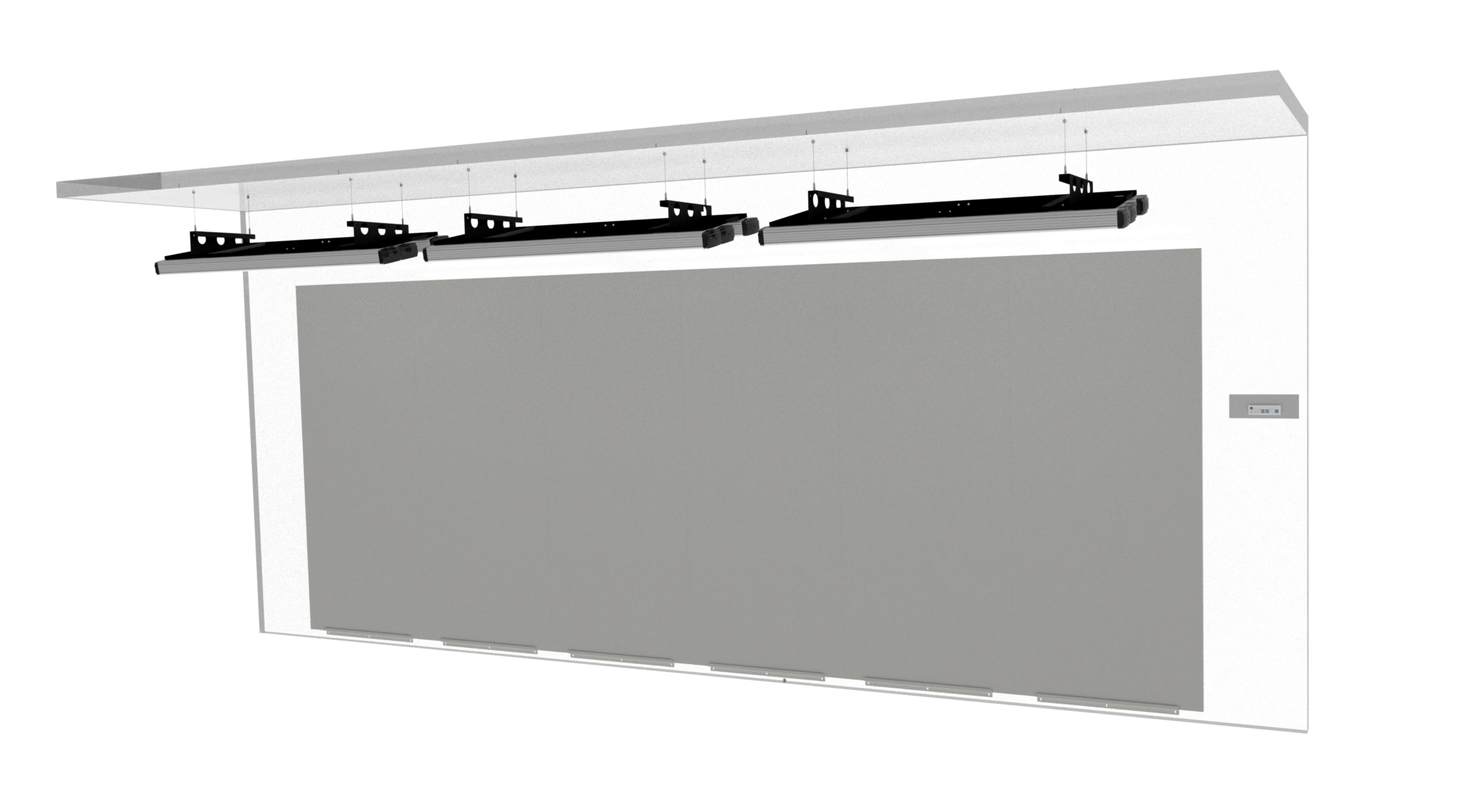

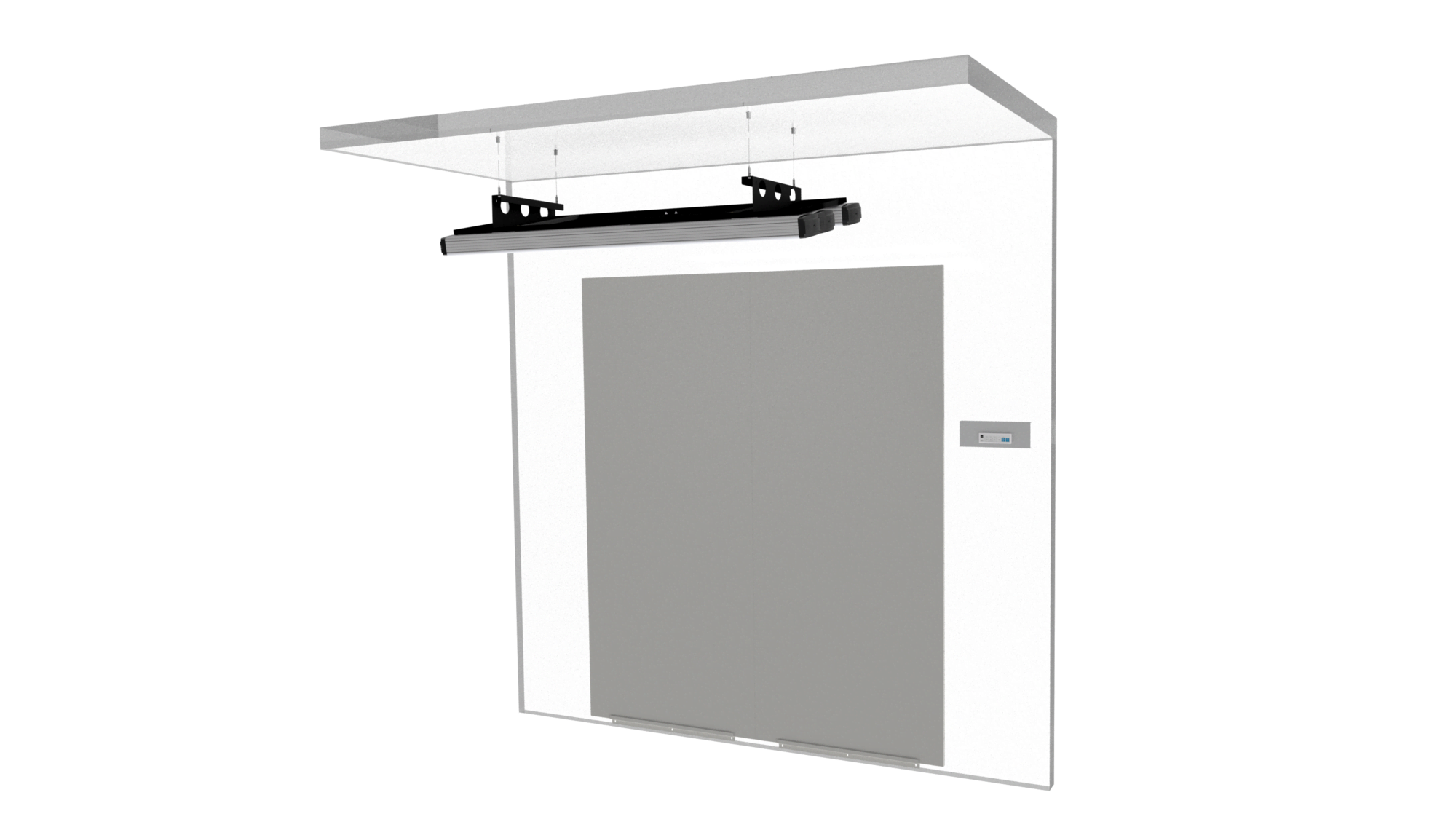

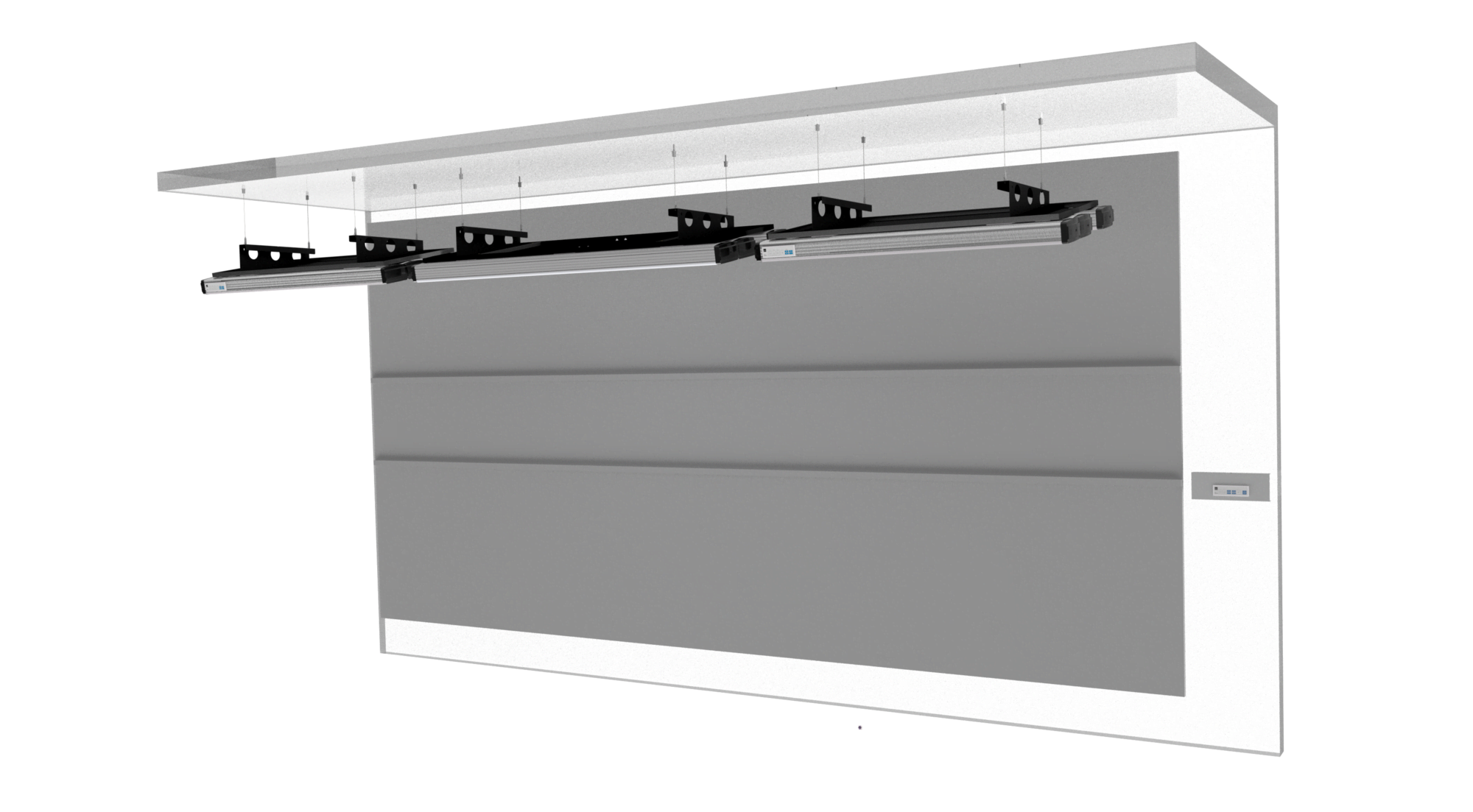

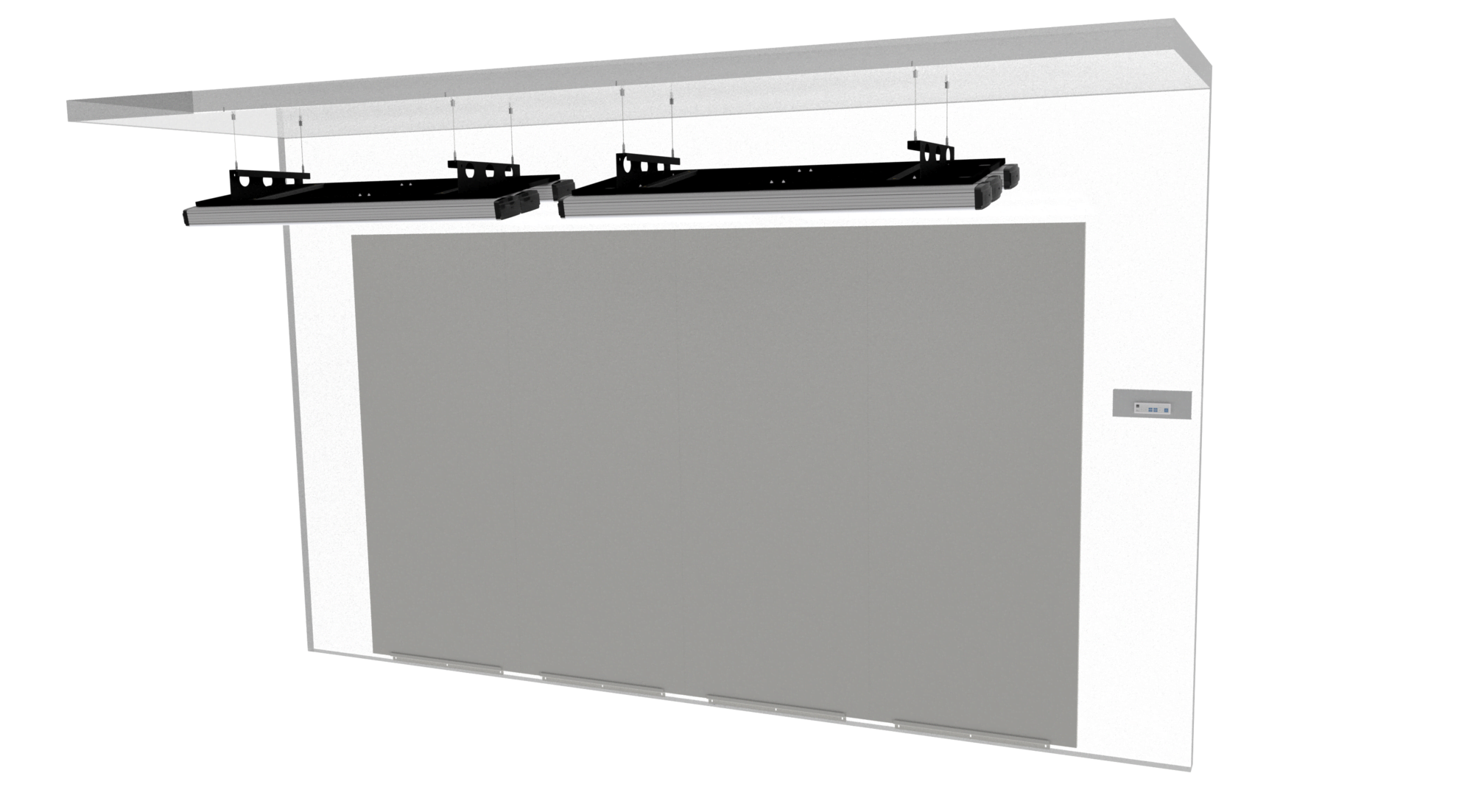

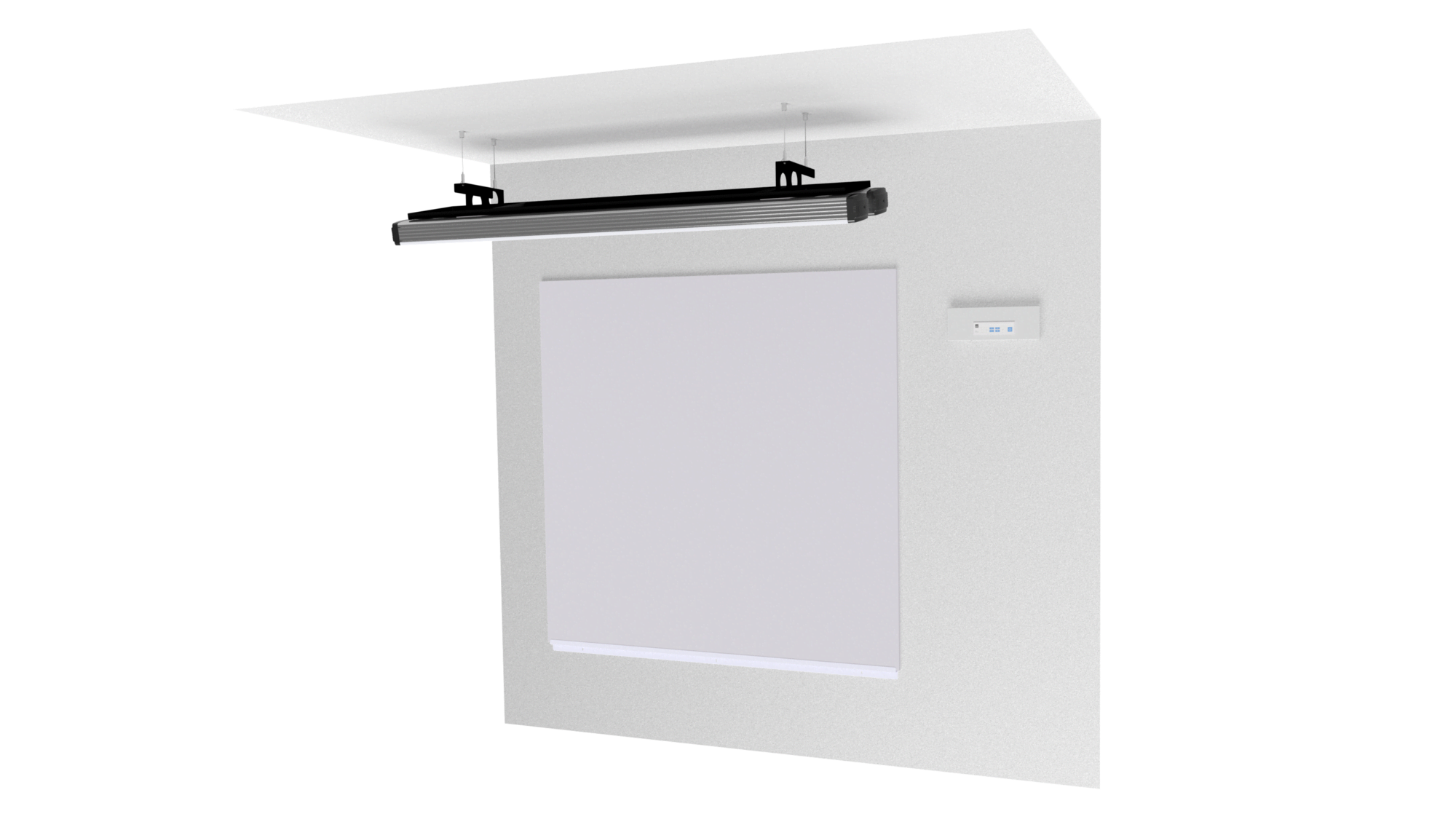

Lamp suspended from the ceiling by wire
Unique LED light technology by JUST, Fogra certified to ISO 3664:2009, Pat. No. US 8,592,748 B2
Switchable light: D50 and D65 according to ISO 3664 and ISO 3668
UV content can be enabled or disabled for either illuminant regarding new and old ISO standard
UV-ONLY: UV-A for the detection of optical brighteners
Continuously dimming and USB connection for soft proofing applications
No color shifts while dimming
No preheating after turning on
20x longer operating life despite to fluorescent lamps (> 50.000 h)
Stable light output during the entire lifespan
Annual relamping not required
Including lamp suspended from the ceiling by wire
Color Rendering Index (CRI) Ra ≥ 95
Exact color coordinates (10°):
D50: x = 0.3478 / y = 0.3595 (≤ 0,002)
D65: x = 0.3138 / y = 0.3309 (≤ 0,002)
Low metamerism index in the visible range: ≤ 0.8 (MIvis)
Low metamerism index in the UV range: ≤ 0.6 (MIuv)
external controller "LED Remote Control" (available optionally)
