DLS color proofStation 6B

Specifications

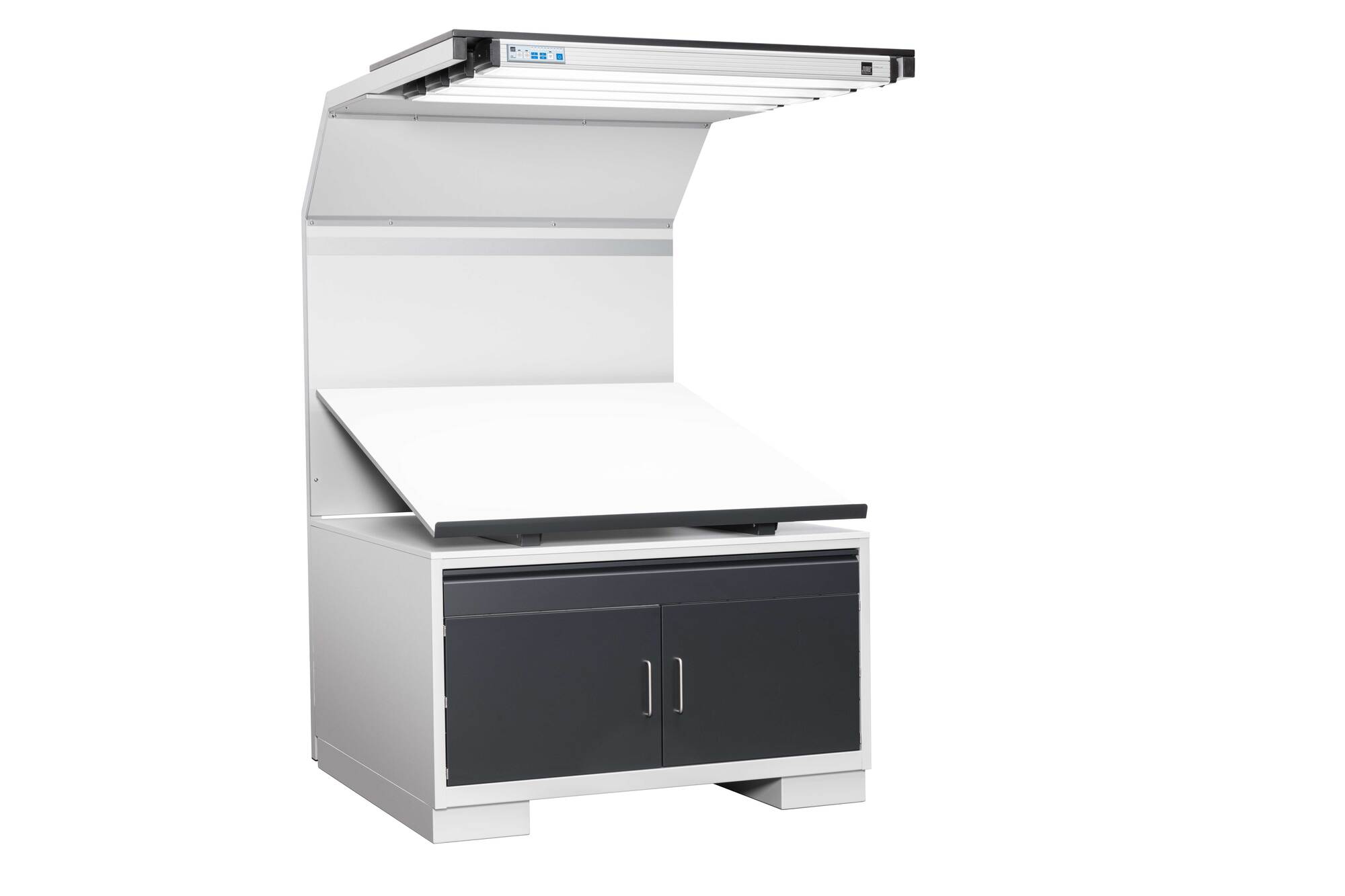

The classic color matching station with convenient cabinet is now available with the new JUST DLS moduLight color proofing light. With the bush of a button you can switch between D50 and D65 and UV content can be enabled or disabled for either illuminant. Especially during the transition time for converting from FOGRA39 to FOGRA51/52, the solution provided by the new LED luminaire is a practical one.

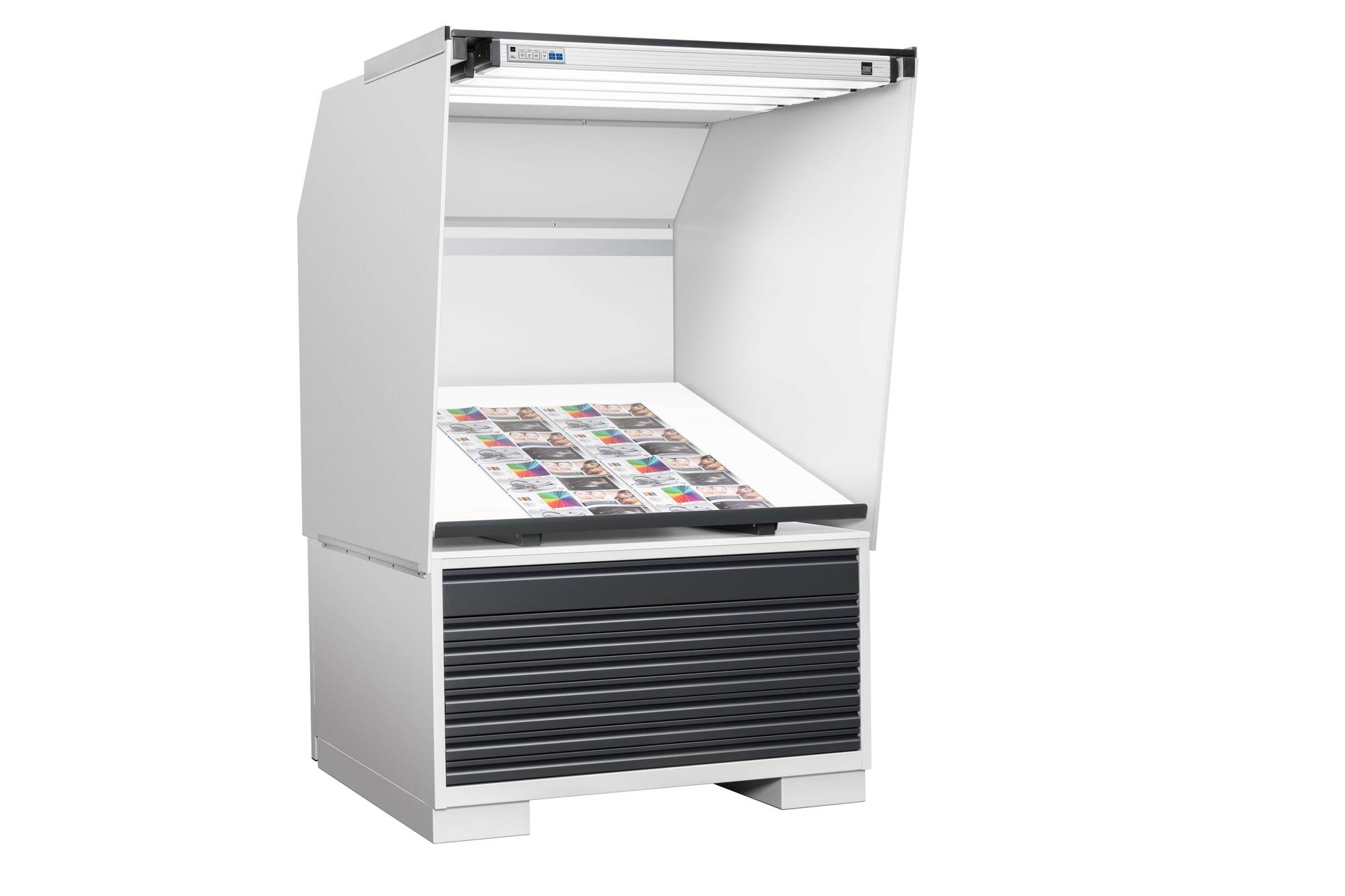

Perfect for regular color checking in printing companies
Practical cabinet with Inclinable work surface for organized storage of proofs and plots
Unique LED light technology by JUST, Fogra certified LED luminaire to ISO 3664:2009, Pat. No. US 8,592,748 B2
Switchable light: D50 and D65 according to ISO 3664 and ISO 3668
UV content can be enabled or disabled for either illuminant regarding new and old ISO standard
UV-ONLY: UV-A for the detection of optical brighteners
No color shifts while dimming
No preheating after turning on
20x longer operating life despite to fluorescent lamps (> 50.000 h)
Stable light output during the entire lifespan
Annual relamping not required
Side walls for shielding against extraneous light
Extremely homogeneous as well as glare- and reflection-free illumination, thanks to Fresnel-type prismatic lens
2000 lux illuminance according to ISO standard
Color Rendering Index (CRI) Ra ≥ 95
Exact color coordinates (10°):
D50: x = 0.3478 / y = 0.3595 (≤ 0,002)
D65: x = 0.3138 / y = 0.3309 (≤ 0,002)
Low metamerism index in the visible range: ≤ 0.8 (MIvis)
Low metamerism index in the UV range: ≤ 0.6 (MIuv)

Illuminant characteristics

Asymmetrical light design for viewing from one side (fixed viewing position)
Almost no reflection and glare
Switch off UV content for assessment to old ISO 3664
Noon daylight (LED 5000 K, D50 CIE)
Average daylight from the northern sky (LED 6500 K, D65 CIE)
UV-Only (UV-A)

Features

USB interface for connection to PC
Illuminants are dimmable
« general product features of all devices; special featuers of particular devices »
Different illuminant sequences can be programmed

Applications

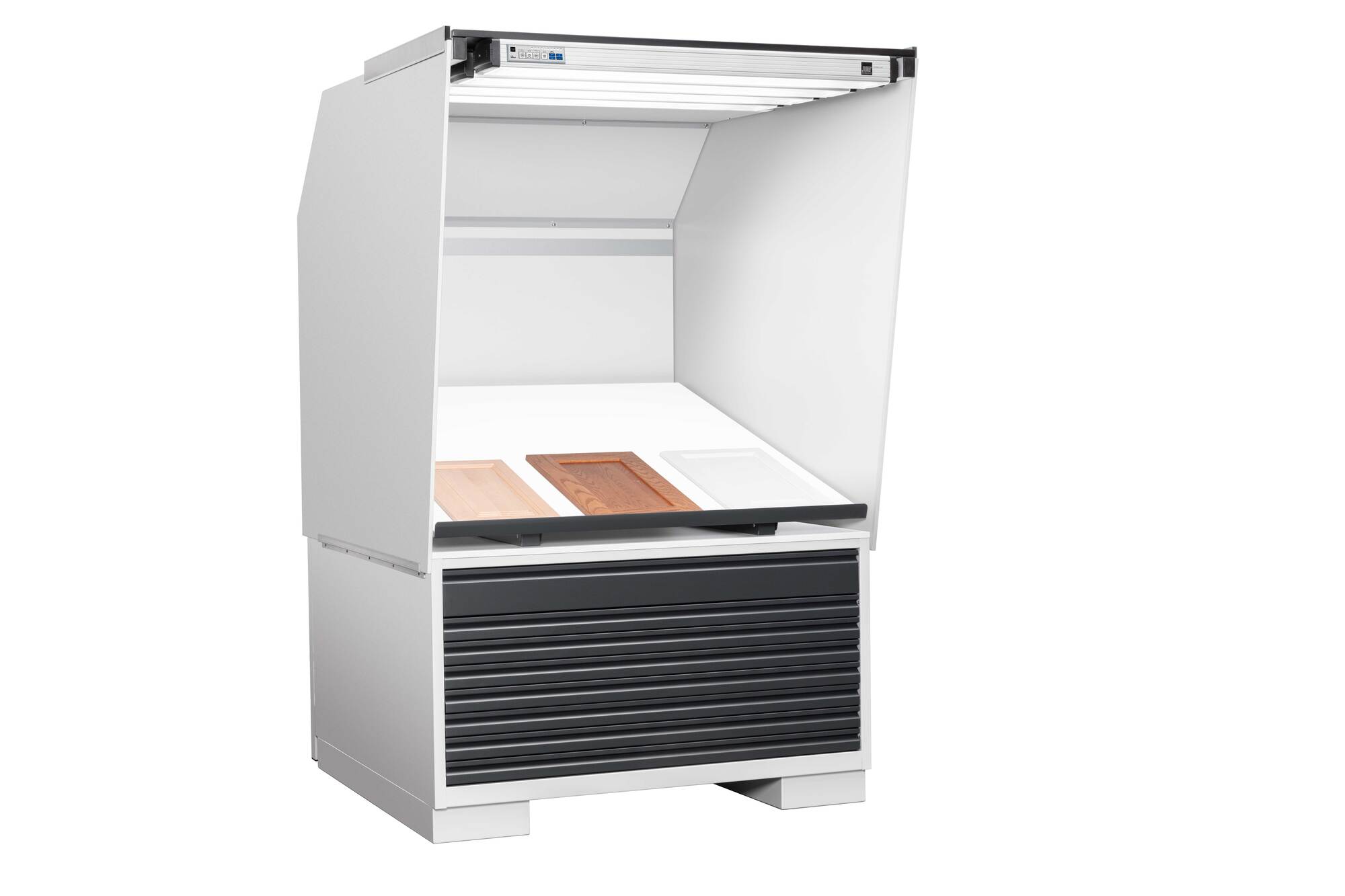

For flat viewing samples, such as paper, fabrics, coatings
« general product features of all devices; special featuers of particular devices »
For particularly large and flat viewing samples
Good detection of metamerism thanks to multiple illuminants
